Heat Exchanger Straight Tubing

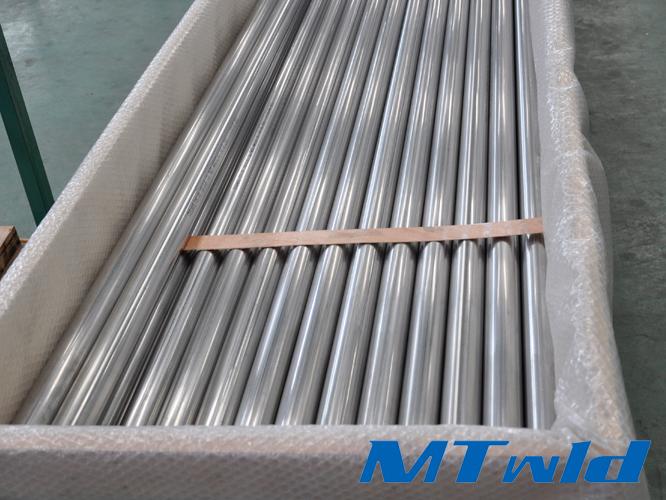

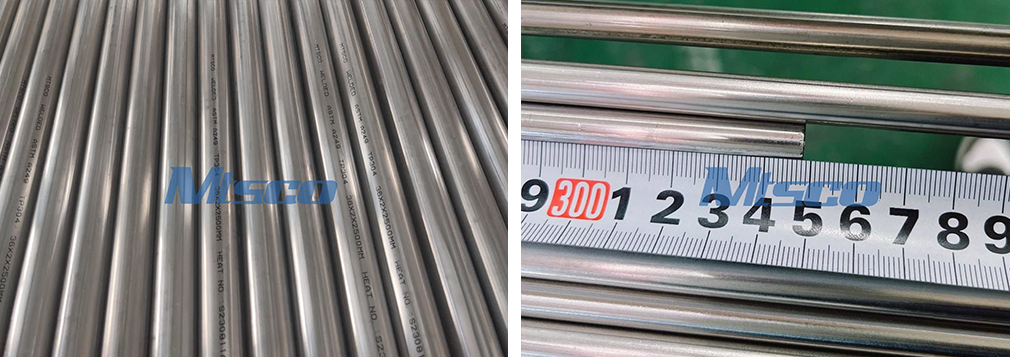

ERW ASTM A249 S30400 Welded Straight Heat Exchanger Tube

Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry, water heater industry, air-conditioning industry etc. This kind of seamless tube has a very important position in our all products.

Send Inquiry

 ERW ASTM A249 S30400 Welded Straight Heat Exchanger Tube



Heat Exchanger Tube ASTM A249 Standard :


Size ODNominal WallOutside DiameterLengthWall
1/2" (12.7)0.065" (1.65)/0.049" (1.25)+/-0.005 (0.13)+1/8" (3.18) - 0+/-10.0%
3/4" (19.1)0.065" (1.65)/0.049" (1.25)+/-0.005 (0.13)+1/8" (3.18) - 0+/-10.0%
1" (25.4)0.065" (1.65)/0.049" (1.25)+/-0.005 (0.13)+1/8" (3.18) - 0+/-10.0%
1-1/2" (38.1)0.065" (1.65)/0.049" (1.25)+/-0.008" (0.20)+1/8" (3.18) - 0+/-10.0%
2" (50.8)0.065" (1.65)/0.049" (1.25)+/-0.008" (0.20)+1/8" (3.18) - 0+/-10.0%
2-1/2" (63.5)0.065" (1.65)+/-0.010" (0.25)+1/8" (3.18) - 0+/-10.0%
3" (76.2)0.065" (1.65)+/-0.010" (0.25)+1/8" (3.18) - 0+/-10.0%
4" (101.6)0.083" (2.11)+/-0.015" (0.38)+1/8" (3.18) - 0+/-10.0%
6" (152.4)0.083" (2.11)+/-0.030" (0.76)+1" (25.4) - 0+/-10.0%
6" (152.4)0.109" (2.77)+/-0.030" (0.76)+1" (25.4) - 0+/-10.0%
8" (203.2)0.109" (2.77)+0.061" (1.55)/-0.031" (0.79)+1" (25.4) - 0+/-10.0%


Heat Exchanger Tube Application:


a) For fluid & gas transport

b) Structure & machining etc


Heat Exchanger Tube Advantages:


a) Advanced technology of cold draw machine

b) Advanced annealing machine

c) Better mechanical property

d) More precise dimension

e) Perfect inspection method and inspection equipment etc

Heat Exchanger Straight Tubing

Heat exchanger tube, heat exchanger is widely used in chemical industry, petroleum industry, electric power industry, food industry and many other industries.

Heat Exchanger Straight Tubing Features

A heat exchanger is a device that transfers heat energy from one fluid to another. The heat of a high-temperature object is always transferred to a low-temperature object. In this way, the heat on the hot side is exchanged to the cold side. Sometimes we call it a heat exchanger. Heat exchange tube is an important part of transporting fluid in heat exchanger. Our heat exchanger tube, alloy 625 HE tube has superior surface finish, better mechanical property, more precise dimension, perfect inspection method and inspection equipment

MTSCO: -ERW ASTM A249 S30400 Welded Straight Heat Exchanger Tube Manufacturer

Who MTSCO is?

MTSCO established in 2006, during many years development, nowbecomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.

What products can we provide?

What materials can we provide?


304/L/H/N, 316/L/H/N/Ti, 321/H, 309/H, 310S, 347/H, 317/L904L

Duplex steel

31803, 32205, 32750, 32760

Nickel alloy

Alloy B/ N10001, Alloy B2/N10665, Alloy B3/N10675, Alloy C4/N06455, Alloy C22/N06022, Alloy C276/N10276, Alloy C2000/N06200, Alloy G35/N06035, Alloy G30/N06030,
Alloy S/N06635, Alloy N/N10003, Alloy X/N06002, Alloy 188/R30188, Alloy 230/N06230,
Alloy 556/R30556, Alloy 600/ N06600, Alloy 601/N06601, Alloy 617/N06617,
Alloy 625/N06625, Alloy 718/N07718, Alloy X750/N07750, Alloy 800/N08800,
Alloy 800H/N08810, Alloy 800HT/N08811, Alloy 825/N08825, Alloy 925/N09925,
Alloy 926/N08926, Alloy 400/ N04400, Alloy K500/N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200

How can MTSCO service customers?

MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.

Thank you very much for reading this, I wonder if my presentation will help you with your current problem? Looking forward to hearing from you!


1. Can you provide samples?
Of course, We can provide a few sample tubes for you to inspect and experiment.
2. Can we mark our logo on the product?
3. What is your packing?
4. What inspection will you do?
5. What certificates do you have?
6. What is your minimum order quantity(MOQ)?
7. How long is your delivery time?
8. What is your terms of payment?
